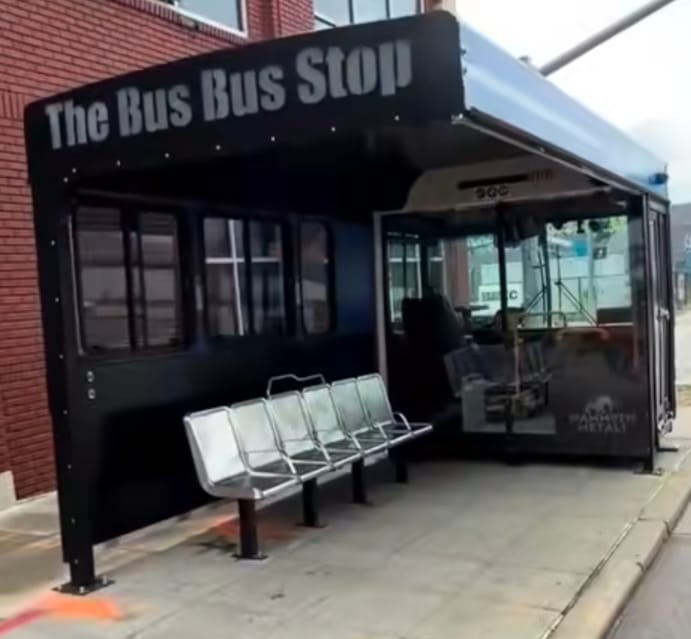

PREFABRICATED BUS STOP

Name: PREFABRICATED BUS STOP
Brand: D K ASSOCIATES
Price: 85000.00 INR
Availability: InStock

Price 85000.00 INR/ Number

Get a Price/Quote

MOQ : 1 Number

BUS STOP DRAWING & TECHNICAL SPECIFICATION

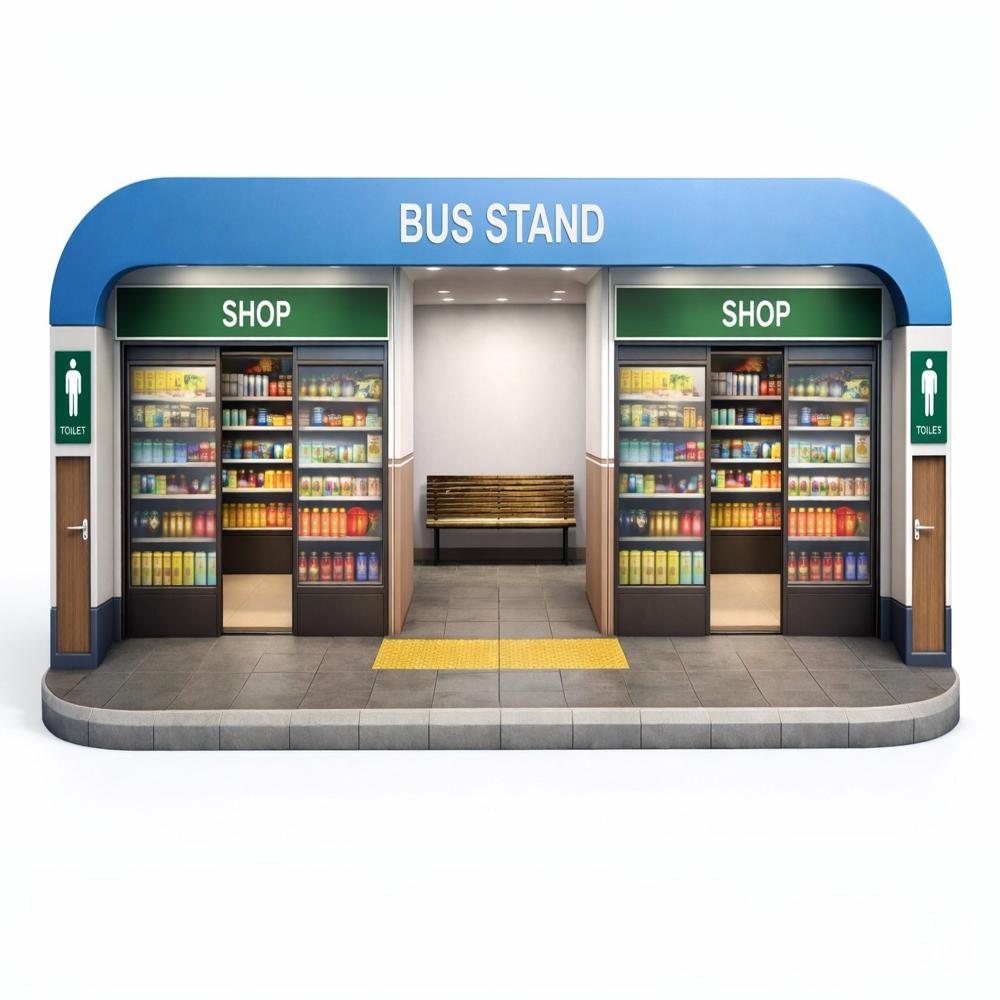

TECHNICAL SPECIFICATION OF BUS STOP

TOTAL SIZE OF BUS STOP : 33*9*11 FEET (L*W/D*H)

SIZE OF SHOP : 8*8*10 FEET (L*W/D*H) each SHOP

SIZE OF BUS STOP : 12*9*10 (L*W/D*H) FEET

SIZE OF TOILET : 2.5*4*10 (L*W/D*H) FEE

S	Work	Item No.	Description of Work
1	Floor	Providing and laying in position specified grade of reinforcement cement concrete	Concreting for Floor up to the length x depth x height (33 x 9 x 1) feet
2	Frame (Side,roof, back)	M.S. Structural steel	Steel Frame work , frame structure made of pallets shape


3	Side Frame Roof Frame Back Frame	Sandwich pattern Puff Pannel.	Side frame :-- Sandwich pattern panel having thickness . fastened on perforated box frame section on both side. Roof Frame :-- Sandwich pattern panel having thickness . fastened on perforated box frame section on both side. Back Frame :-- Sandwich pattern panel sheet having thickness . fastened on one side & hollow frame section on both side for Front Board.

S	Work	Item No.	Description of Work
4	Bench for 12 people	M.S. Structural steel	Chair for steel sheet bolted with M.S. section to make bench for seating arrangement.
5	Railing	M.S. Structural steel	railing on the side & front Portion of the structure made of . M.S. tube.
6	Display Board	M.S. Structural steel	frame made of ms pipe or perforated channel Size .
7	ACP Work	ACP work 2 mm.	Aluminium composite panel fitted on the side of the front board.
8	Front Gate of Shop	M.S. Structural steel	MS Shutter gate of the shop & counter of shape are made of steel section with combination of M.S. sheet.
9	Roof	Colour coated profile sheet roofing	Providing corrugated profile roofing including vertical/ curved surface fixed with polymer coated J or L hooks, bolts and nuts 8 mm diameter with bitumen.
10	Primer Coating	Prime coat, iron or Wall	Primer on the whole M.S. structure.
11	Enamel Painting	Spray painting 2 coat	Two coat enamel painting on the whole M.S. structure.

S	Work	Item No.	Description of Work
12	UV Printing	Glossy vinyl board making & fitting HIGH INTENSITY MICRO- PRISMATIC TYPE SHEETING	Printing of Photos & slogans on the 1 mm. vinyl sheet.
13	Solar Light		1. Providing & fixing of 03 No. White-LED (W-Led) based Solar Light in Roof Bus Stop 2. Providing of 01 No. Solar Based LED Light each Toilet 3. Providing & fixing 01 No. light roof of every toilet not solar bases. 4. 01 Battery provide for Bus Stop & Toilet light 5. 01 Solar LED Light (auto cut off) in out side of bus stop
14	Fans		01 FANS (INSIDE EACH SHOP)
